pure hydrogen generator Purity Hydrogen Generator for lab and gas chromatography analysis

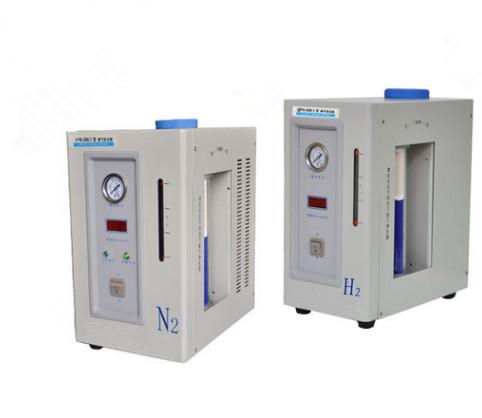

DYHX300 High Purity Hydrogen Generator

DYHX300 Technical Parameter

1. H2 Purity: >99.999%

2. H2 Flow Rate: 0-300ml/min

3. Discharge Pressure: 0-0.4Mpa~0-0.6Mpa Adjustable (Factory setting 0.3 Mpa)

4. Max Power: 220V±10%; 50HZ±5%

5. Pressure stability accuracy: 150W

6. Environmental Conditions: ambient humidity 10-40ºC; relative humidity≤85%

7. Dimension: 320*180*350mm

8. Weight: 10kg

DYHX300 Features and advantages

1. Easy to operate, safe and reliable. Only need to add distilled water for daily use, start the power switch can produce hydrogen.(Available in multiple chromatography);

2. Gas pipe uses the stainless steel tube (electrolytic polishing , ultrasonic cleaning),has the overpressure protection installment, two purification;

3. Unique anti-return liquid device to ensure the liquid not return;

4. barrel-type electrolytic tank, electrolytic materials selected imported special precious metals, effectively improve the efficiency of electrolysis, constant pool temperature, to promote the service life of electrolytic tank greatly improved;

5. Output flow stability, automatic tracking, purity does not decay, can be used continuously.

Changzhou DAYE energy technology co., LTD. Is a professional high-tech enterprise dedicated to the r&d,

production and sales of electrolytic hydrogen-oxygen gas and hydrogen and oxygen energy equipment.

The products include: hydrogen and oxygen generator, hydrogen and oxygen machine, automobile carbon removal machine, hydrogen and oxygen cutter, water welding machine, hydrogen production equipment, etc.,

the company has many patents, independent intellectual property rights.

Of energy with the first-class research and development center and professional production base, product series of DY oxyhydrogen generator has the characteristics of safety, energy saving, high efficiency, environmental protection, in metallurgy industry, electrical industry, metal welding, the pharmaceutical industry, steel, automobile maintenance, energy-saving reform, aerospace, cutting and other industries, scientific research, and other industries widely used.
